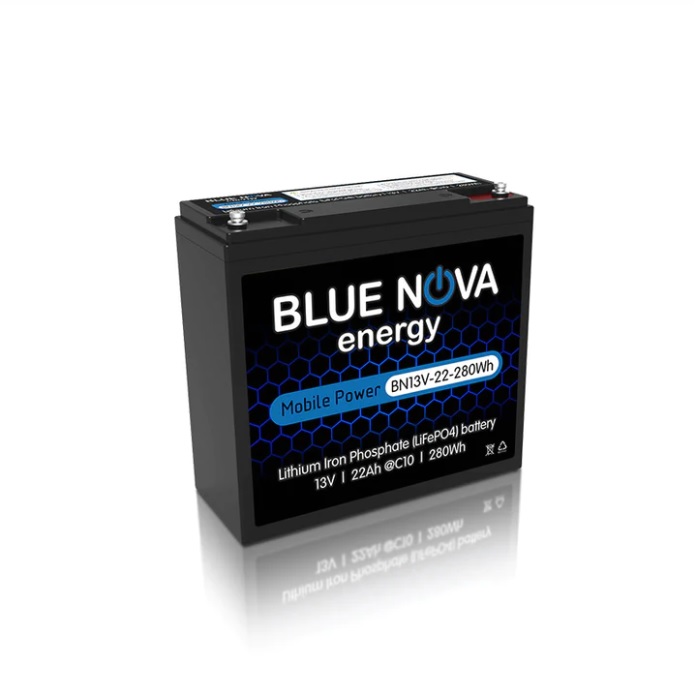

BlueNova BN13V-22-280Wh MPS LiFePO4 Battery

Product Features

•  LiFePO4 technology. Ultra-safe Lithium Iron Phosphate.
• Built-in Battery Management System (BMS).
• Light weight & compact.
• IP56 rated water & dust resistant.
• Highly durable ABS enclosure.
• Drop in lead acid replacement in terms of physical size. Note: ensure that your charge controller/ inverter are lithium compatible.

Technical Specifications

• Model: BN13-22-286Wh.
• Capacity (Ah): 22.
• Current (V): 13.
• Energy (Wh): 286.
• Dimensions (mm): 181 x 77 x 167 (W x D x H) .
• Weight (kg): 2.6.
• Charge Current (A): 4.
• Max Charge Current (A): 22.
• Max Discharge Current (A): 22.
• Pulse/Peak Current (<3s): 44.
• Cycles @ 100% DoD: 2000.
• Cycles @ 80% DoD: 3000.
• Cycles @ 50% DoD: 5000.
• Cycles @ 30% DoD: 8000.
• Terminal Type: M5.
• Max. 4 in series, max. 2 in parallel
• Recommended to not expand if the difference between the oldest & newest battery is more than 12 months.
